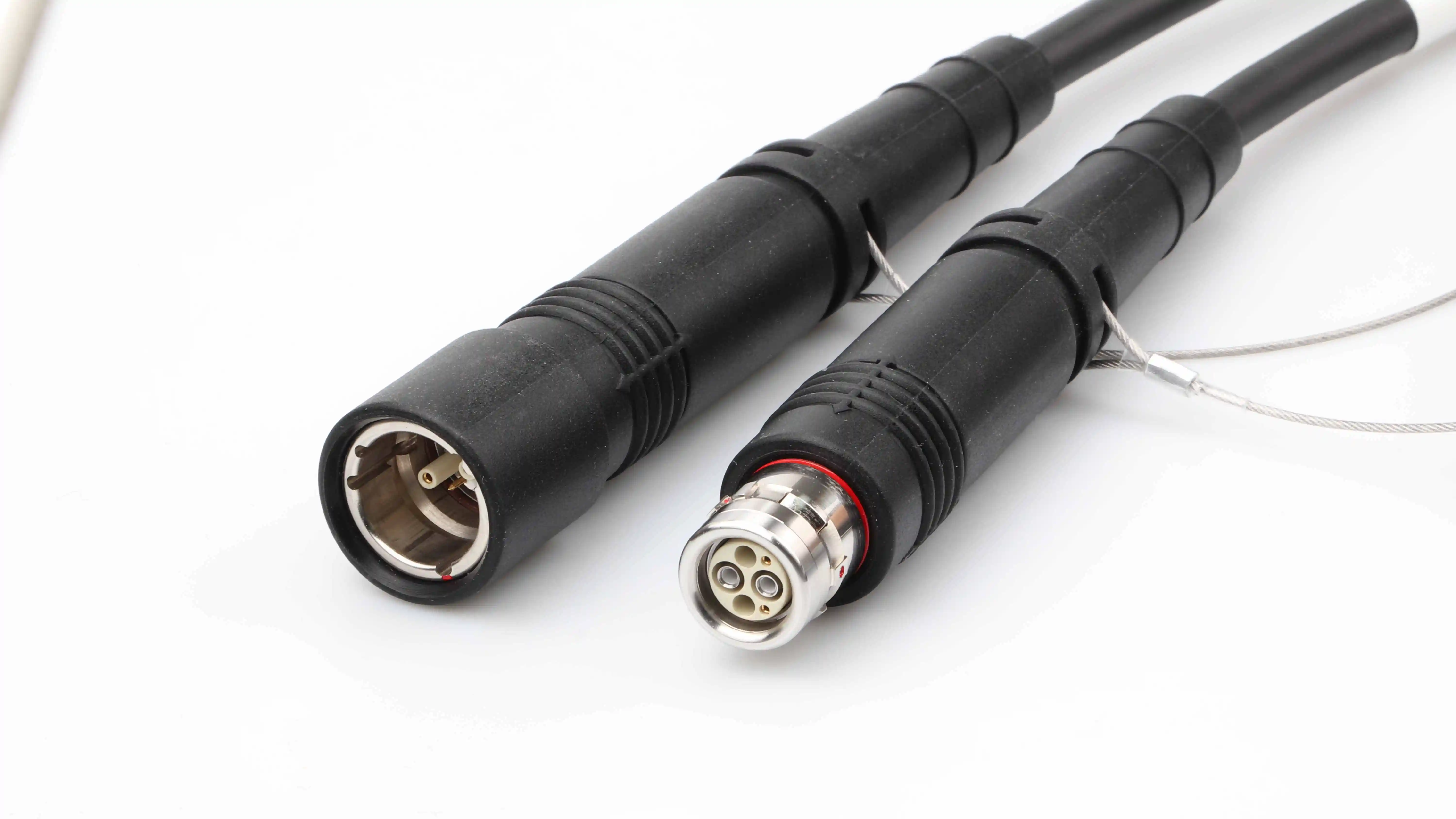

Designed for professional broadcast camera connectivity, this hybrid connector system integrates fiber optics, power, and signal transmission in one compact push-pull interface.
Designed for Next-Generation Broadcast Camera Connectivity
This SMPTE 304 hybrid connector system is engineered for HDTV and broadcast camera applications where optical signal integrity, power reliability, and mechanical robustness are critical. It supports secure, stable performance in both studio and outside broadcast environments.
The optimized internal structure reduces component count while maintaining SMPTE 304 interface compatibility, improving assembly efficiency and helping reduce installation risk.
Key Advantages
- SMPTE 304 interface compatible for HDTV camera and broadcast systems
- Push-pull self-latching for fast, secure mating and unmating
- Hybrid design combining fiber optic, power, and signal contacts
- Optimized structure with fewer components and improved internal routing space
- Easier fiber handling and fiber length adjustment during cable assembly
- Reduced optical epoxy curing time to speed up production
- Robust performance for field operation, vibration, and repeated mating cycles
Hybrid Contact Configuration
The connector supports a hybrid insert layout commonly used in broadcast applications:
- 2 × Fiber optic contacts (single-mode 9/125 μm)
- 2 × Power contacts (HV)
- 2 × Signal contacts (LV)
Precision alignment supports stable optical performance across frequent mating cycles and demanding environments.
Performance Overview
Optical Performance
| Parameter | Typical Value | Reference |
|---|---|---|
| Fiber type | Single-mode 9/125 μm | IEC 61300 series |
| Average insertion loss | ≤ 0.10 dB | IEC 61300-03-04 |
| Return loss (UPC) | ≥ 45 dB | IEC 61300-03-06 |
Electrical Characteristics
| Parameter | Typical Value | Note |
|---|---|---|
| Insulation resistance | > 1012 Ω | High insulation for safe operation |
| Shell electrical continuity | < 1.6 mΩ | Stable grounding continuity |
| Contact resistance (signal) | < 3.6 mΩ | Low resistance for stable signal |
| Contact resistance (power) | < 4.8 mΩ | Low resistance for power delivery |
| Rated current (power contacts) | Up to 10 A | Per power contact |
| Working voltage (power) | Up to 600 V RMS | Design-dependent compliance required |
| Working voltage (signal) | Up to 42 V RMS | Low-voltage signal interface |
Mechanical & Environmental Performance
- Mating durability: up to 20,000 cycles
- Operating temperature: -40°C to +80°C
- Temperature cycling: -55°C to +90°C
- Cable retention: up to 1000 N
- Impact resistance: 2 m drop onto concrete (method-dependent)
- Shock & vibration: designed to withstand broadcast field conditions
- Water resistance: IP68 (mated condition, model-dependent)
- Corrosion resistance: salt spray tested (model/treatment dependent)
Materials & Construction
- Shell components: stainless steel / high-strength brass (configuration dependent)
- Insulators: high-performance engineering polymer (e.g., PEEK)
- Contacts: copper alloy with reliable plating system
- Sealing: silicone or fluorocarbon elastomers (model dependent)
Material selection is designed to support long-term durability, stable performance, and reliable sealing under demanding studio and OB conditions.
Available Configurations
This connector system can be supplied in multiple configurations for different installation requirements:
- Straight plug
- Fixed plug (panel mount)
- Fixed socket (front or rear panel mount)
- Free socket (cable mount)
Optional accessories such as bend reliefs, protective caps, identification rings, dust caps, and standard cable assemblies can be provided upon request.
Typical Applications
- HDTV broadcast cameras
- Outside broadcast (OB) vans
- Studio camera systems
- Camera control units (CCU)
- Broadcast infrastructure and patch panels
Summary
This SMPTE 304 hybrid push-pull connector system delivers a reliable solution for professional broadcast connectivity. With an optimized internal structure, robust materials, and stable optical/electrical performance, it is ideal for broadcast and HDTV camera deployments requiring secure, field-ready operation.
