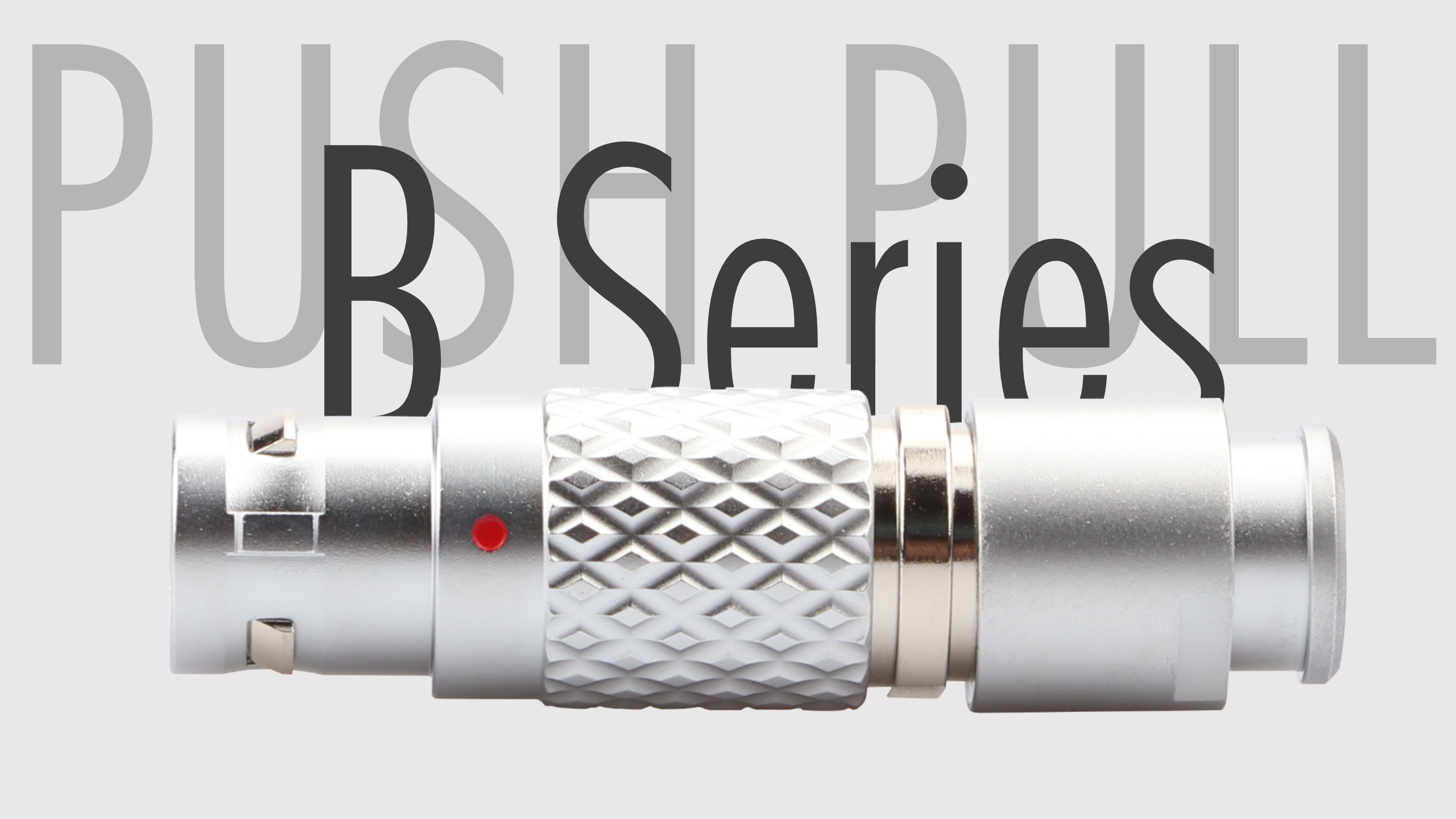

B Series Push Pull Connector

Name: B Series Push Pull Connector
Uploaded: 2023-09-22T10:43:20+08:00
Duration: 25 s
Description: Indoor special positioning pin positioning, B series as a basic model wide range of applications, affordable, with push-pull self-locking function, multi-core type 2~32 core welding and printed board needle core (straight or corner) protection level can reach IP50, high cost performance.

Indoor special positioning pin positioning, B series as a basic model wide range of applications, affordable, with push-pull self-locking function, multi-core type 2~32 core welding and printed board needle core (straight or corner) protection level can reach IP50, high cost performance.

SEND INQUIRY NOW

Maximum Humidity:: up to 95% at 60°/140°F

Locking Type:: push pull self-latching type

Protection index(mated):: IP50

Endurance:: 5000 cycles

Shock resistance:: 100g,6ms

Salt spray corrosion test:: 96hr

Resistance to Vibration:: 15g[10Hz~2000Hz]

Shielding Efficiency:: 75dB(10MHz) 40dB(1GHz)

Working Temperature:: -55°~+250°

SEND INQUIRY NOW

Product Details

MAIN FEATURES:

◪Security of the push -pull self-latching system
◪Multipole types 2 to 32 contacts
◪Solder or PCB contacts (straight or elbow)
◪High Packing density for space saving
◪ Multiple key options to avoid cross mating of similar connectors
◪Keying system (G key standard) for connector alignment

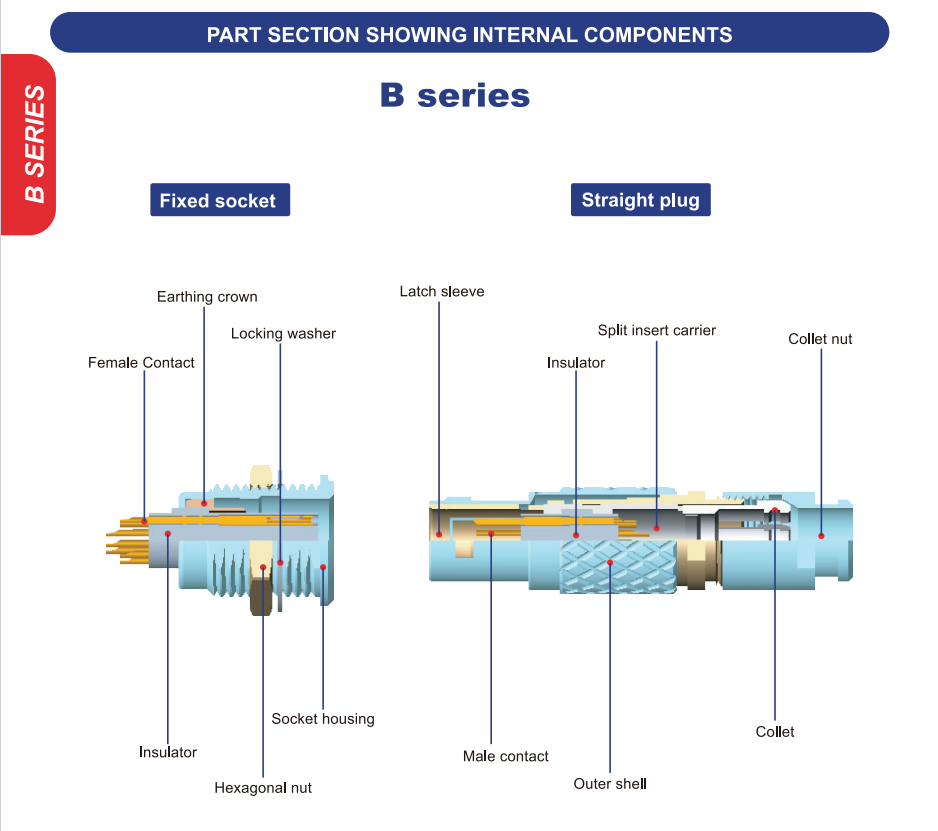

What is B Series?
As our main product, the B series is also the most common product. The reason why it has become the favorite series of products is that it has a safe and stable push-pull self-locking system and multiple cores to choose from, which can meet the needs of customers. With clear positioning, it can achieve high-density installation indoors and save space. The most important thing is to provide 360° omnidirectional EMC to release electromagnetic interference. We have a unique appearance patent, from an ergonomic point of view, develop customer needs, compatible with market products. Looking forward to working with you in front of the screen.

Basic Information

Year Established

--
Business Type

--
Country / Region

--
Main Industry

--
Main Products

--
Enterprise Legal Person

--
Total Employees

--
Annual Output Value

--
Export Market

--
Cooperated Customers

--

Circular Push Pull Connectors 2 to 30pin Male and Female

Push Pull Connectors are easy to use and have a wide range of application.1. Straight plug, elbow plug, back or front panel mount receptacle for your choice;2. Multiple contacts: solder or PCB (straight or elbow), 2-30pins available;3. Key system to avoid mis-plug. Standard type: G key, 0 degree. 4. Can be applied in the field of Studio, Broadcast, Camera, Drone, Communication system, Monitoring equipment, data acquisition, Automotive, computer, military, Testing and measurement, Robots and so on.5. Multiple size: from M7 to M18. Meet your different needs.6. Compatible with international brands. Such as FGG.0B.304, PHG.1B.305...
Push Pull Circular Connectors 2 to 30pin Male and Female

Push Pull Connectors are easy to use and have a wide range of application.1. Straight plug, elbow plug, back or front panel mount receptacle for your choice;2. Multiple contacts: solder or PCB (straight or elbow), 2-30pins available;3. Key system to avoid mis-plug. Standard type: G key, 0 degree. 4. Can be applied in the field of Studio, Broadcast, Camera, Drone, Communication system, Monitoring equipment, data acquisition, Automotive, computer, military, Testing and measurement, Robots and so on.5. Multiple size: from M7 to M18. Meet your different needs.6. Compatible with international brands. Such as FGG.0B.304, PHG.1B.305...
B Series T3 Elbow FHG FPG Plug 2-30 pin Circlar Push Pull Connector with good price - MOCO connector

MOCO B series T3 plug is 90 degree right angle connector. It is compatible with original models, such as FPG.00.305, FPG.1B.304, FHG.3B.308 etc.2-30 pins available. MOCO can provide cable assembly service.Security of the push-pull self-latching system;Solder or PCB contacts(straight or elbow);Keying system for connector alignment;Flexibility: Quickly and flexibility response for customer requirements and market changes. Universal model are rich in stock to achieve fast delivery.MOCO connector Wholesale Right Angle B Series T3 Elbow FHG FPG Plug 2-30 pin Circlar Push Pull Connector with good price.
Professional MOCO B Series T1 Push Pull Connector for Industrial Electronics

MOCO connector Professional MOCO B1 T1 manufacturers,AUTONOMY: Owned advanced imported production equipment and professional inspection and testing equipment to complete the production and testing independently
