B Series Z12 Push Pull Connector | Right Angle PCB Mount Socket for Reflow Soldering
B Series Z11 push pull connector with right angle PCB mount design. Supports wave and reflow soldering up to 260°C, ideal for industrial control boards.
The B Series Z11 push pull connector is a right-angle PCB mount socket designed for stable multi-pin signal transmission in compact electronic systems.
It supports wave soldering and reflow soldering up to 260 °C, offering reliable performance for industrial control and instrumentation applications.
B Series Z12 Push Pull Connector | Right Angle PCB Mount Socket for Reflow Soldering
The B Series Z12 push pull connector is a right-angle PCB mount socket designed for stable multi-pin signal transmission in compact electronic systems. It supports wave soldering and reflow soldering up to 260 ℃, making it ideal for automated PCB assembly in industrial applications.
Short Description
The Z12 PCB mount push pull socket features a secure push-pull self-locking mechanism and an EXG right-angle structure to enable high-density PCB layouts. Built for reliability, it performs across demanding temperature conditions and supports modern soldering processes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Series | B Series |
| Connector Type | Push Pull Circular Connector |
| Socket Type | Z12 PCB Mount Socket |
| Mounting Style | PCB Mount |
| Orientation | Right Angle (EXG) |
| Locking Mechanism | Push-Pull Self-Locking |
| Contact Type | Male Contacts |
| Number of Contacts | Multiple pin configurations available |
| Termination Method | PCB Soldering |
| Soldering Process | Wave Soldering / Reflow Soldering |
| Maximum Reflow Temperature | Up to +260 ℃ (short-term) |
| Operating Temperature Range | -55 ℃ to +260 ℃ (typical) |
| Housing Material | Metal Shell |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Plated |
| Insulator Material | High-Temperature Engineering Plastic |
| Rated Voltage | Depends on contact configuration |
| Rated Current | Depends on contact configuration |
| Mechanical Life | ≥ 5,000 mating cycles (typical) |
| Protection Level | IP rating available with matching plug |
| Vibration Resistance | Suitable for industrial environments |
| Application Field | Industrial Control, Automation, Instrumentation |
| Compliance | RoHS |
Electrical ratings and IP protection level depend on specific contact configurations and matched cable connectors. Please contact MOCO for detailed specifications.
Applications
The Z12 PCB mount push pull socket is designed for applications requiring secure locking, high-temperature soldering compatibility, and compact board layouts. Its right-angle EXG structure and multi-pin design suit high-density electronic systems.
Industrial control boards
Automation equipment interfaces
Signal acquisition and processing modules
Measurement and testing instruments
Embedded control systems
Instrumentation and industrial electronics

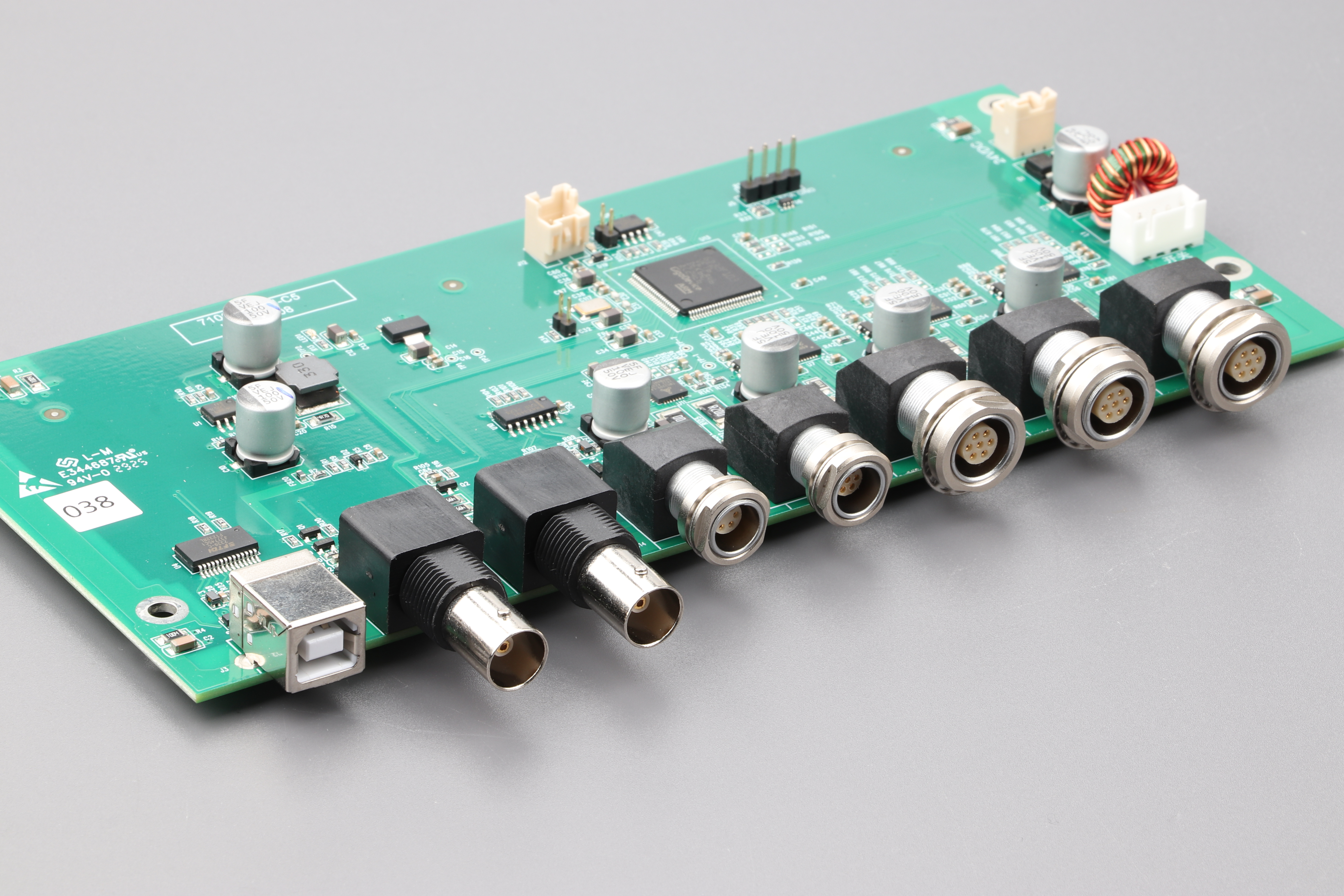

![B Series Z12 Push Pull Connector | Right Angle PCB Mount Socket for Reflow Soldering 8]()
