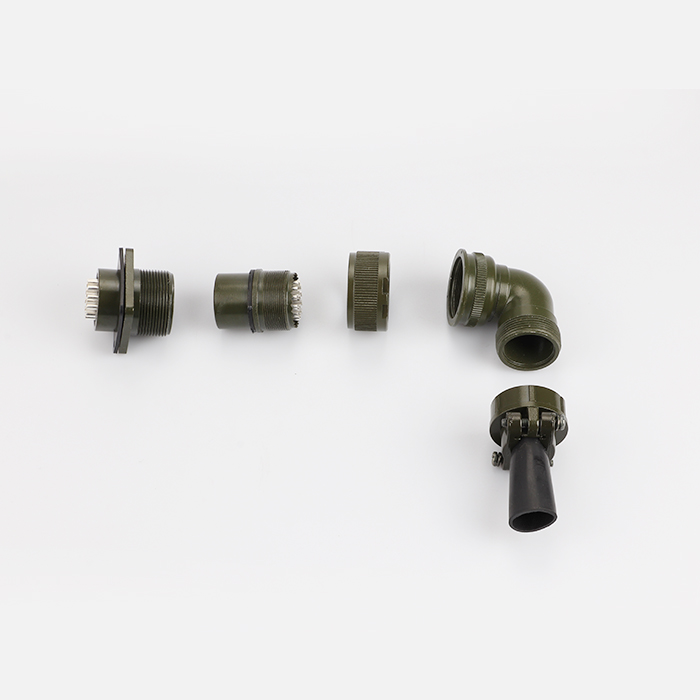

MIL-DTL-5015 is a United States Military Standard which covers heavy-duty circular electrical connectors with soldered or crimped contacts. Mil 5015 connectors are a family of heavy-duty circular connectors. MS5015 series military electrical connectors, are widely used in military communication equipment, radar, marine guidance, robotics, etc. This series including straight mil dtl 5015 spec plug, 90° elbow plug, wall mount receptacle, box mount receptacle, in-line receptacle and bulkhead feed-thru receptacle.They are selected for their ease of engagement and disengagement, with an ability to house different types of contacts.In addition, it can be used in the rail and mass transit markets.
1.Low cost and general duty;
2.Wide selection of housing styles and insert types;
3.Optional of mil connectors - cadmium or non-cadmium, environmentally friendly zinc alloy material;
4.Accessories for both individual wire seal and jacketed cable.
Economical Military Style Solder Connector System
MOCO Connector offers a complete line of MIL-DTL-5015/MIL-C-5015 type solder connectors. MOCO Connectors are built to meet and exceed all performance military connectors specifications for the military MIL-DTL-5015 connectors standard. In addition, the series provides a complete offering of accessories to ensure complete protection and reliability. These heavy duty, environmentally resistant connectors offer the protection required for signal and power applications in harsh environments. The MOCO Connector provides a versatile and high-performance, yet economical, solder terminated metal connector solution designed for mission success.MIL DTL 5015 mil grade connectors Cross Reference.
These extremely rugged, harsh environment circular connectors are available in threaded or bayonet coupling styles with solder or removable crimp contacts, front and rear release.From our large component inventory, we build thousands of military specification 5015 connectors from stock with very fast turnaround for custom assembly and shipment.
Features & Benefits of Military Connector:
Rugged aluminium metal shells
Threaded coupling / screw locking
1-101 contact arrangements (solder or crimp terminations)
Wide temperature range: -55C to + 125C
RoHS plating as standard
Medium to heavy weight environmental cylindrical
Multiple interlock systems ensure permanent insert retention Completely sealed against environmental extremes
Seven mounting styles, in shell sizes 8 to 40
Proprietary quick disconnect plug, with or without lanyard available
Classes include aluminum or stainless steel shells, or firewall capability
Accommodation of contact sizes 0 to 16
Over 100 insert arrangement patterns available, accommodating from a minimum of 1 to a maximum of 85 circuits including high power RADSOK socket contacts
Mil connectors-Spec Compatible – 100% compatible with MIL-DTL-5015 connectors/MIL-C-5015 Solder Connector

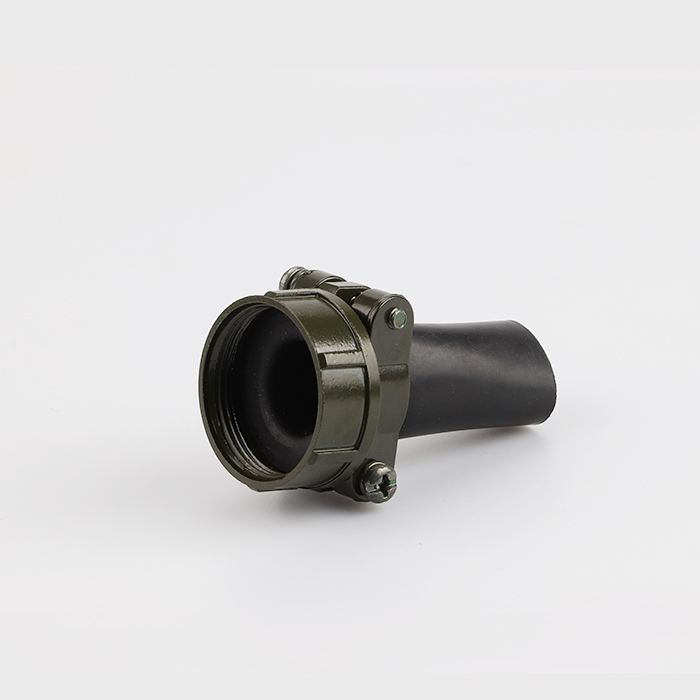

Complete Kits – Get complete backshell and sealing accessories with your mil dtl 5015 connectors
Quick Delivery – Short production lead-times on most items
Choosing Your MIL-SPEC Connector
MIL-SPEC connectors are specially designed to comply with military specifications.You need to have a few basic things in mind when you're choosing your mil spec connector. Product parameters to take into account include the number, type, size and coupling method of the contacts, the shell specifications, and the terminals.
MIL-C-5015 Connector: is a general use connector standard that specifies the most popular type of circular connector, used in commercial applications as well as military. This specification covers cylindrical electrical connectors with front and rear release contacts, made with removable crimp or solder contacts. These connectors are available in several classes, which are rated for operation from a minimum temperature of -55°C up to maximum temperatures of 125°C, 175°C or 200°C.
MIL-C-22992 Connector:is a connector standard for heavy-duty connectors that can handle very high power levels. This type of plug and receptacle electrical connectors are multi-contact, quick disconnect devices used in military and industrial applications. They can be operated at temperatures between -55°C and 125°C.
MIL-C-26482 Connector: MIL-C-26482 encompasses two types of durable connectors, each featuring a sealed receptacle and compatible add-ons. These compact circular connectors allow for speedy disconnection. While Series I is typically utilized in military communication systems due to its efficient mechanical, electrical, and environmental characteristics, both series can be interconnected with power contacts but not with shielded contacts.
