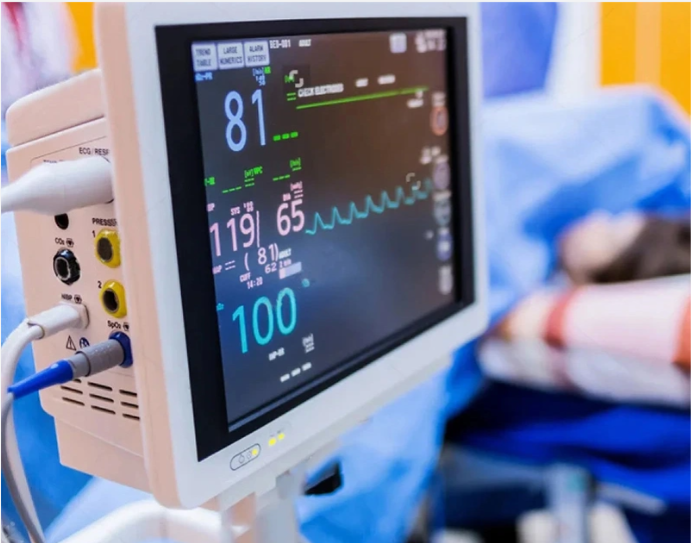

You can build a durable connector that lasts. But can you build one that survives repeated sterilization cycles and protects patient data? Medical devices demand both a rugged body and an even tougher spirit. It's a high-stakes challenge, and we can help you solve it.
We show you how to strike the right balance. This guide gives you the tools to design a connector that meets today's demands and stands the test of time.
The outer shell of a custom medical connector is its armor. This armor must fight off everything from aggressive chemical wipes to high-temperature steam. Pick the wrong material, and your product will fail. We see medical connectors that discolor, crack, or even melt after just a few hundred sterilization cycles.
Many engineers want to use common, low-cost plastics. But materials like ABS and polycarbonate often fail to meet the rigorous demands of a hospital setting. They simply can’t withstand repeated exposure to common disinfectants. You will see them become brittle and break.
Instead, look at higher-performance options. We often use polysulfones (PSU, PES) or polyphenylsulfone (PPSU). These medical connector materials have outstanding resistance to heat and chemicals. They hold their properties under pressure.
Your material choice depends entirely on the sterilization method. An autoclave uses extreme heat and steam. A material must have a high heat deflection temperature to survive. Ethylene Oxide (EtO) gas or hydrogen peroxide plasma methods, on the other hand, are less about heat and more about chemical resistance.
It's easy to focus on the plastic shell and forget the metal contacts. But these also see repeated cleaning. Standard brass or tin-plated contacts corrode quickly.
For the contacts and outer shells, we choose medical-grade stainless steel (316L). It offers superior corrosion resistance. This small decision prevents signal degradation over the product's lifespan.
A medical connector endures more than just chemicals. It gets dropped, pulled, and stepped on. A truly great design accounts for this abuse. Your connector must be tough, but also easy to use in a high-pressure situation. We focus on two key areas: the physical build and the feel of the connection.
The physical structure of your connector is its skeleton. You need to build in features that protect the internal parts. We often use overmolding to create a strong seal between the cable and the connector body. It provides a robust, seamless cover. You also need to think about cable strain relief. A flexible strain relief helps distribute stress and prevent the cable from breaking where it meets the connector.
A proper connection is a matter of life and death. You can't leave it to chance. A well-designed connector provides clear, tactile feedback when it connects. We use positive latching mechanisms that give you a confident "click" or a firm resistance when you mate the two halves. This audible and physical cue reassures a medical professional that the device is securely connected and ready for use. It’s a simple design choice with huge implications.
The connector’s main job is to transmit a signal. But can it transmit a perfect signal after being exposed to steam, chemicals, and heat hundreds of times? The biggest challenge is maintaining a solid electrical connection. We worry about moisture seeping in and temperature fluctuations degrading performance.
Chemical washes and steam sterilizers can find their way inside your connector. Once inside, they cause corrosion on your metal contacts. A corroded contact introduces resistance and noise, degrading your signal. High temperatures can also affect the physical properties of internal components, which changes your signal's integrity.
The best way to protect a signal is to build a fortress around it. We use high-quality gaskets and seals to prevent chemicals and moisture from reaching the pins. These seals must also be chemically resistant. Silicone is a great option. It’s flexible, durable, and holds up well against common sterilization agents. We focus on a tight, watertight seal.
The connection between the pin and the socket is where a signal lives. The pin must maintain a consistent and low-resistance contact for thousands of cycles. We use specialized materials and plating. Gold plating over a nickel layer is our standard. This combination provides excellent conductivity and corrosion resistance. It ensures a stable signal over the device’s entire life.
A design is just a theory until you prove it works. The final step is to validate your connector under rigorous conditions. We collect data to prove that your device will perform as promised. This is the last stop before a product hits the market.
Your test plan must cover every key performance indicator. You need to test for durability, electrical performance, and environmental resistance. We conduct a series of tests to get the full picture.
● Mating cycles: How many times can you connect and disconnect the device?
● Retention force: How much force does it take to pull the connector apart?
● Contact resistance: Does the signal stay stable after hundreds of cycles?
● Dielectric strength: Can the connector handle high voltage without arcing?
Medical devices are exposed to liquids. An Ingress Protection (IP) rating tells you how well a product is sealed against solids and liquids. An IP68 rating, for example, means the connector is fully sealed. This is a crucial detail for your design. It gives you and the end user confidence that the connector will not fail because of liquid exposure.
Medical environments are full of electrical noise. The signal inside your connector can be corrupted by everything from a buzzing machine to a radio frequency. A dirty signal can cause a device to fail. Your connector needs to be a shield, not an antenna.
The most effective way to protect a signal is with a physical barrier. A metal shield, often a circular shell around the connector, acts as a Faraday cage. It stops external electromagnetic interference from reaching the sensitive signal pins. This shielding is a fundamental part of the design.
A shield is only as good as its ground. The shield must be connected to the cable's braided screen and then to the device's chassis. We ensure a full 360-degree ground contact. This creates a low-impedance path for noise to flow harmlessly away from the signal. It's a critical detail you can't overlook.
What happens inside the connector matters, too. For digital and analog signals, we use twisted pairs. The twisting cancels out any induced noise. For high-frequency data or video signals, we use coaxial cables. Their design naturally provides a high level of immunity to interference.
Building a reusable medical connector is a thoughtful process. It starts with selecting the right materials and continues with designing for durability and a confident user experience. A great design also protects the signal from environmental stress and proves its reliability with rigorous testing.
When you bring all these elements together, you don't just create a component. You create a connector that is safe, reliable, and ready to perform for years. It gives a device the long-term integrity it needs.
